6 (4 + 2) lithium battery electric warrior RG-GRF1206 golf cart, the vehicle adopts the new design, higher discrimination, big LOGO front design fashion atmosphere, LED day running lights and taillights vehicle more fashionable cool, aluminum alloy top peng edge rich three-dimensional feeling, four-wheel hydraulic disc brake, electronic automatic parking and other high-end configuration, make driving performance even better.
● A large number of vehicle using PP, aluminum alloy and other lightweight materials, to ensure that the body is light and greatly increase the range.
● Tough shape with a spacious and comfortable ride space, so that you can enjoy the beautiful while enjoying the nature.
● Double fork arm independent suspension design can also be done leisurely when encountering complex road surface.
● The practicality of the cup support on both sides and the folding storage space at the rear is greatly improved.
● LED instrument to let the driving conditions at a glance.
● Strong motor brings unprecedented climbing ability.
● Because of its excellent vehicle performance, novel design, comfortable and safe ride, more and more resorts, villas, garden hotels, tourist attractions and other areas are widely introduced and used.
Parameter and Configuration | Model:4+2 Golf Cart Raptor RG12 |
Dimension:L*W*H | 3670mm*1390mm*2030mm |
Electric System | ||||||
Controller | Yingboer 48V-400A | |||||
Battery | 48V 150AH Lithium Iron Phosphate Battery (Optional) | |||||
Electric Motor | High-efficiency full closed-loop control AC asynchronous motor, 33V5kW | |||||
Charger | Charger: U.S. 48V 13A/110V, Europe 48V 25A/220V (Charging time: 8-10 hours) | |||||
DC Converter | Non-isolated DC Converter 48V/12V-300W | |||||
Display Screen | 10.1-inch LCD IP66 waterproof multimedia combination instrument, with radio, MP5, bluetooth music, bluetooth phone, vehicle diagnostic function |
Body Configuration | ||||||
Front Windshield | DOT-certified anti-rollover acrylic glass | Optional: DOT-certified tempered glass + wiper | ||||
Roof | Matte black square tube frame + black PP injection-molded integrated roof | |||||
Dashboard | Injection-molded dashboard, waterproof dual-position ignition switch, single-arm combination switch, cup holder; 12V power supply, USB + Type-C charging, USB external audio input | |||||

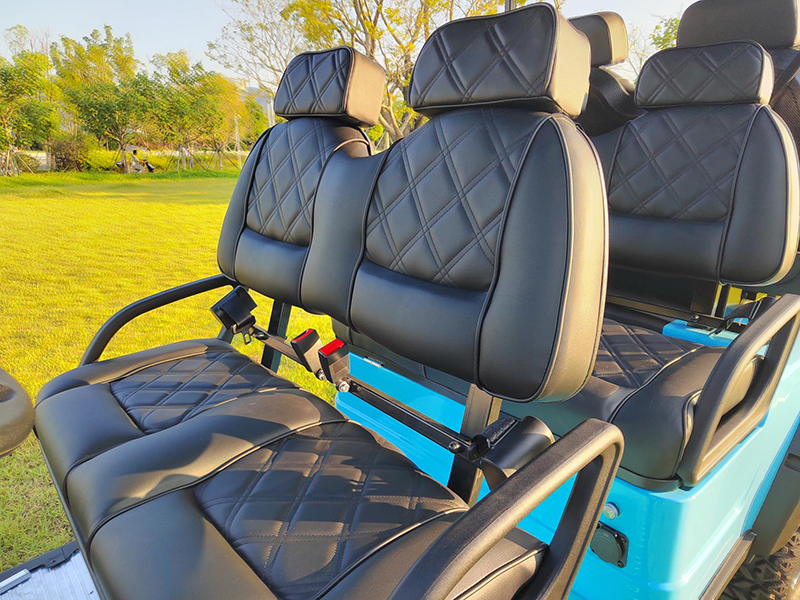

Seat | Ergonomic seats with leather upholstery | |||||

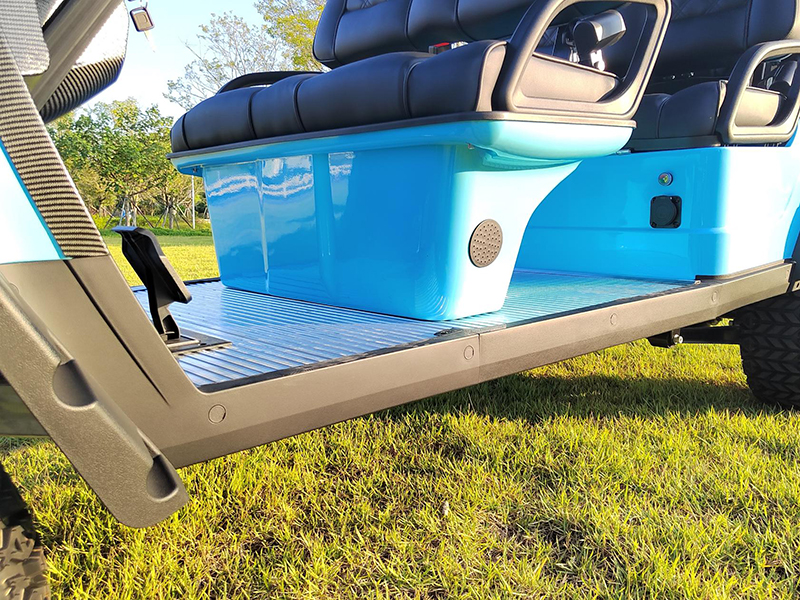

Floor | Sandblasted aluminum alloy non-slip floor, high-strength structure, corrosion-resistant, aging-resistant | |||||
Body | Front cover, seat bucket, and body panels made of automotive-grade PP injection molding | |||||
Frame | Adopts a lightweight, high-strength trapezoidal frame design, with electrophoretic coating on the surface, and baked paint for rust prevention, rust resistance, and corrosion resistance | |||||
Rearview Mirror | Manually adjustable, foldable exterior rearview mirrors on both sides | |||||
Lighting and Signals | LED front combination lights: (low beam, high beam, turn signals, daytime running lights, position lights) | |||||
Steering System | Bidirectional rack-and-pinion steering system with automatic gap compensation | |||||
Brake System | Dual-circuit four-wheel hydraulic brakes, four-wheel disc brakes + electronic parking brake | |||||
Front Axle and Suspension | Double wishbone independent suspension, coil springs + simple hydraulic shock absorbers | |||||
Rear Axle and Suspension | Integral rear axle with a gear ratio of 12.3:1, C-type frame trailing arm+coil spring shock absorbers+simple hydraulic shock absorbers+and stabilizer bar | |||||
Tire Diameter | Tires: 23-10.5-12, 12-inch aluminum alloy wheels |
Technical Parameters | ||||||
Maximum Speed | U.S. 25 miles/h (Europe 30 km/h) | |||||
Braking Stability | 1.6m | |||||
Braking Distance | ≤4m | |||||
Wheelbase | 2400mm | |||||
Track Width | 980mm | |||||
Minimum Ground Clearance | 120mm | |||||
Rated Passenger Capacity | 6 | |||||
Maximum Climbing Gradient | 25% | |||||
Hill-Holding Performance | 25% | |||||
Minimum Turning Radius | 6m | |||||
Curb Weight | 580 kg (including battery) | |||||
Driving Range | ≥50 miles (on flat roads) |
