Due to its excellent vehicle performance, novel design, comfortable and safe ride, it is widely introduced and used in more and more resorts, villa areas, garden hotels, tourist attractions and other areas.
Widely used in golf communities, tourist attractions, resort hotels, exhibition centers, large industrial parks, airports, and other large public venues.

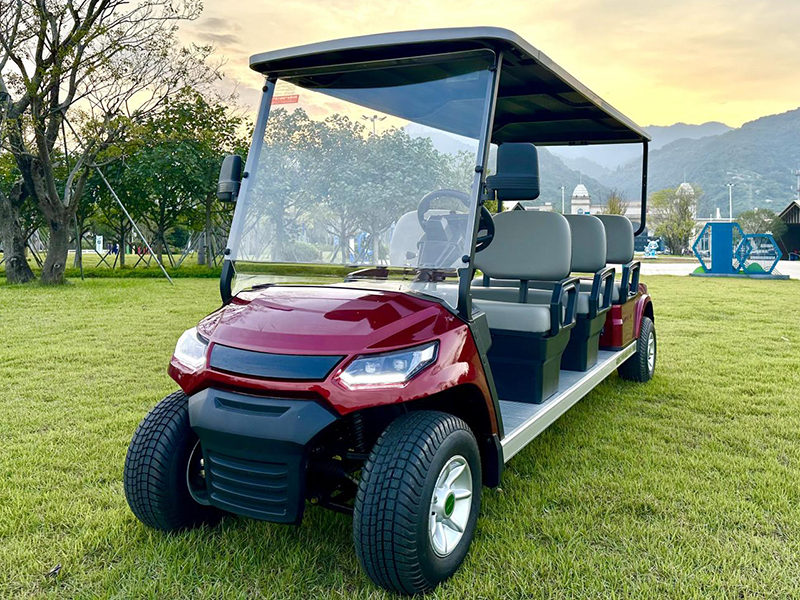

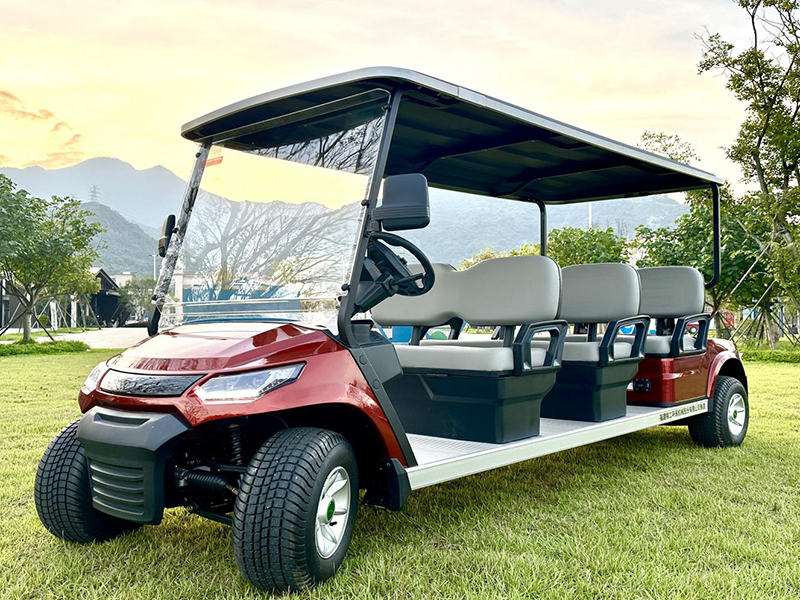

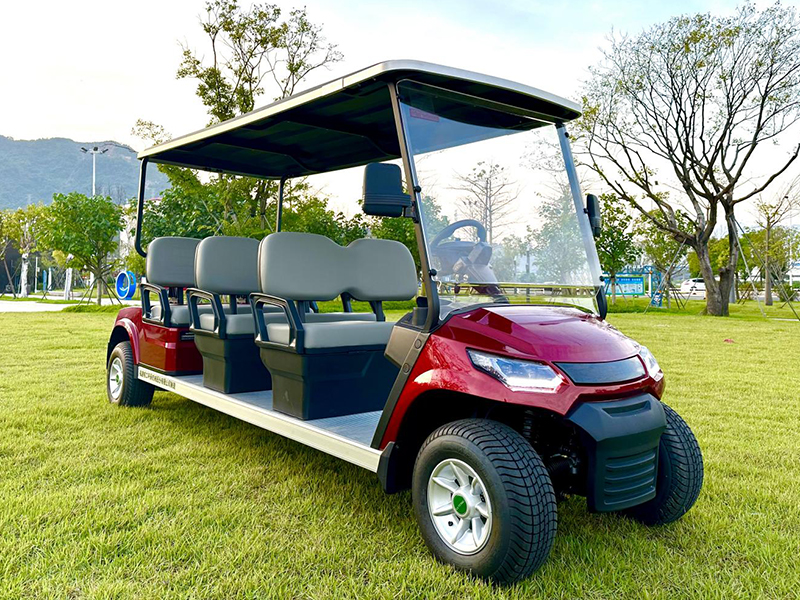

Our RG-260 golf cart focuses on safety, durability and high-end comfort to enhance the group transportation experience. Ideal for golf courses, resorts and recreational parks, this cart provides an exceptional ride for large groups.
Reinforced Streamlined Construction
The cart is made of high-strength blow molding technology with a hollow structure that effectively absorbs impact. Upon impact, it temporarily deforms and recovers on its own, maintaining its original shape to prevent frame deformation. This design ensures maximum protection for passengers in demanding conditions and maintains the structural integrity of the bodywork, so passengers don’t need to worry about safety.

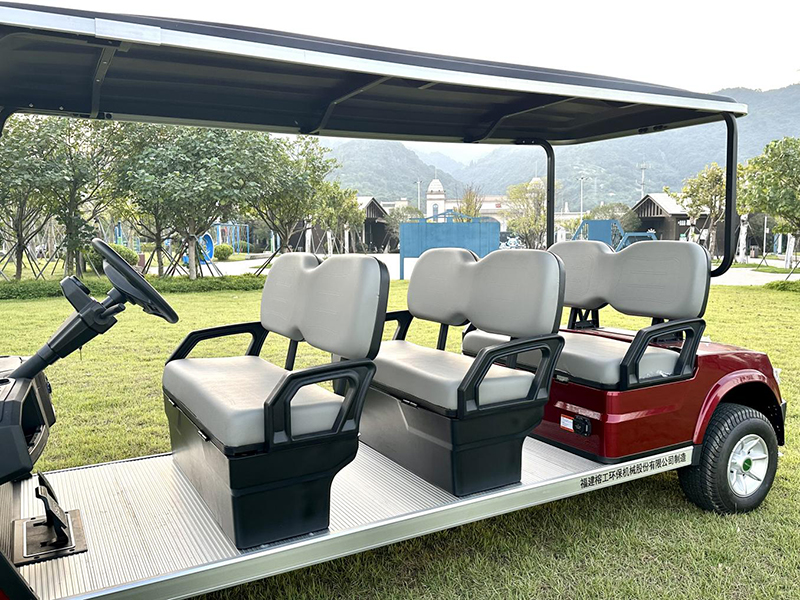

Premium PU leather seats
The six-passenger vehicle features spacious, weatherproof seats made of high-quality PU leather. Waterproof rubber strips integrated into the support panels prevent water damage and ensure long-lasting durability. The seats are made of highly resilient polyurethane foam, ensuring a comfortable and reassuring journey for every passenger.
High-Capacity Battery Options
This model supports a variety of battery configurations, including environmentally friendly lithium iron phosphate batteries known for their high capacity and stability. Maintenance-free and efficient, these batteries meet a variety of energy needs while reducing environmental impact.
Automotive Grade Suspension
The independent suspension system utilizes coil damped springs to provide excellent cushioning and eliminate terrain-borne vibrations. Passengers enjoy a stable and comfortable ride on both flat tracks and rough roads.
Integrated Control System
Advanced DC or AC controllers imported from trusted manufacturers ensure precise control of the cart. Features such as regenerative braking and anti-skid systems enhance safety and efficiency, ensuring the smooth operation of the cart on a variety of surfaces.
Other features
This six-seat model comes with dual hydraulic brakes, aluminum wheels and an energy recovery system for improved performance and safety. Customizable color and battery options allow for personalization to meet individual or brand preferences. A state-of-the-art 360-degree surround sound system further enriches the luxury of this vehicle.
The RG-260 Golf Cart accommodates up to 6 people without sacrificing comfort or performance.
| Parameter and Configuration | RG260 | |
| Dimension：L*W*H | 4150*1210*1900 | |
| Technical Parameters | Rated Passenger Capacity | 6 |
| Driving system | 2WD | |
| Maximum Speed | U.S. 25 miles/h (Europe 30 km/h) | |
| Braking Distance | ≤3.5m | |
| Wheelbase | 3300 | |
| Front and Rear Track Width | 920/1020 | |
| Minimum Ground Clearance | 150 | |
| Maximum Climbing Gradient | 120 | |
| Minimum Turning Radius | 4.5 | |
| Curb Weight(including lithium battery) | 605kg | |
| Driving Range | ≧50mile（on level ground） | |
| Electric System | Controller | Yingboer48V-400A (optional: Curtis Toyota ) |
| Lead-Acid Battery | 48V 150AH | |
| Lithium iron phosphate | 48V 150AH (Optional) 60V 150AH | |
| Electric Motor | AC asynchronous motor, 33V5kW (Optional10KW ) | |
| Charger | Charger: U.S. 48V 13A/110V, Europe 48V 25A/220V (Charging time: 8-10 hours) | |
| DC Converter | Non-isolated DC Converter 48V/12V-300W | |
| Display Screen | 10.1-inch LCD IP66 waterproof multimedia combination instrument, with radio, MP5, bluetooth music, bluetooth phone, vehicle diagnostic function | |
| Body Configuration | Front Windshield | DOT-certified anti-rollover acrylic glass
Optional: DOT-certified tempered glass + wiper |
| Floor | Sandblasted aluminum alloy non-slip floor | |
| Body Frame | Adopts a lightweight, high-strength trapezoidal frame design, with electrophoretic coating on the surface, | |
| Steering System | Bidirectional rack-and-pinion steering system with automatic gap compensation | |
| Brake System | Dual-circuit four-wheel hydraulic brakes, four-wheel disc brakes + electronic parking brake | |
| Front Axle and Suspension | Double wishbone independent suspension, coil springs + hydraulic shock absorber | |
| Rear Axle and Suspension | Integral rear axle with a gear ratio of 12.3:1, C-type frame trailing arm+coil spring shock absorbers+simple hydraulic shock absorbers+and stabilizer bar | |
| Tire Diameter | Tires: 23-10.5-12, 12-inch aluminum alloy wheels
206-65 10-inch aluminum alloy wheels |
|
