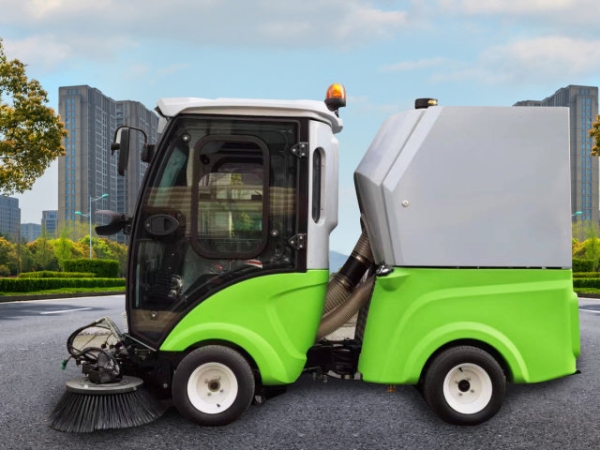

Small Road Sweeper-RG-3150

The small road sweeper is a compact and efficient cleaning device designed for narrow streets, communities, factories, schools, and other areas. It offers flexible operation and powerful cleaning capabilities, making it easy to handle various types of ground litter and dust.

Main Features

1. Compact Design: The small body design allows for flexible maneuvering in narrow spaces and complex environments.
2. Efficient Cleaning: Equipped with a high-efficiency sweeping system, it quickly cleans ground litter and dust, enhancing cleaning efficiency.
3. Eco-Friendly and Energy-Saving: Uses an environmentally friendly and energy-efficient power system, reducing emissions and minimizing environmental pollution.
4. Easy Operation: User-friendly interface and design make driving and operation simple and safe.
5. Multi-Functional: Suitable not only for road sweeping but also for cleaning squares, parking lots, factory workshops, and various other locations.
6. Durable Materials: Made with high-strength, durable materials to ensure reliability and longevity in prolonged use.

Technical Specifications

• Dimensions: 3000×1120×2177mm(Length × Width × Height) 926/926mm meters, Height Z meters
• Weight: 1350kg
• Sweeping Width: 926/926mm
• Garbage Bin Capacity: 14000㎡/H
• Battery Life: 50000 hours (depending on specific model and configuration)
• Power Type: Electric or diesel (optional)
• Maximum Speed: 14km/h

Application Scenarios

• Urban Streets: Effectively cleans urban roads of litter and dust, maintaining a clean city environment.
• Residential Communities: Ideal for daily ground cleaning tasks in residential areas.
• Factory Workshops: Helps maintain clean floors in factories, reducing the impact of industrial waste on the environment.
• School Campuses: Cleans playgrounds, walkways, and other areas within schools, providing a clean learning environment.

Maintenance and Care

• Regular Inspection: Regularly check key components such as the sweeping brushes, vacuum, and garbage bin to ensure they function properly.
• Timely Cleaning: Clean the garbage bin and filter system promptly after each use to prevent blockages and odors.
• Replace Wear Parts: Replace sweeping brushes and other wear parts as needed based on usage frequency and wear conditions to maintain optimal performance.

Summary

The small road sweeper, with its efficient, eco-friendly, and flexible features, is an ideal choice for maintaining cleanliness in cities and various public places. It not only enhances cleaning efficiency but also reduces labor costs, providing strong support for modern urban management.

The Fujian Ronggong RG3150TZ Road Sweeper is a compact, suction-type road sweeper designed with a unique chassis structure. It boasts superior technical performance, outshining similar products in the market. Its sleek design not only enhances its visual appeal but also ensures flexible and easy operation.

Powered by a reliable Perkins diesel engine, the RG3150TZ road sweeper utilizes hydraulic transmission to complete all its operations efficiently. This combination of advanced features and robust power makes the RG3150TZ an excellent choice for maintaining clean and orderly urban environments.

The Fujian Ronggong RG3150TZ Road Sweeper features two sweeping brushes positioned on both sides in front of the cab, with the suction port centrally located underneath. This configuration offers an excellent view of the sweeping operation and simplifies control. The suction system employs an air circulation and reverse blowing structure, with a portion of the air being expelled after passing through a mesh filter. This design ensures there is no secondary pollution from wind and dust during cleaning operations. The road sweeper is versatile, capable of performing both waterless dry cleaning and dual-purpose operations.

Main Features:

1. The rear body of the RG3150TZ road sweeper is fitted with a 240L standard trash can for garbage storage. This trash can is designed for easy replacement, ensuring that the cleaning and maintenance of the entire machine are exceptionally convenient.

2. The front and rear frames of the RG3150TZ road sweeper can twist and swing in two directions, allowing for highly flexible steering and a small turning radius. This enables the sweeper to clean narrow spaces and corners effectively. Additionally, it is designed to navigate potholes and climb curbs, adapting seamlessly to various road conditions..

3.The RG3150TZ road sweeper is equipped with a hand-held suction hose, enabling it to perform vacuuming operations in green belts, water pits, and other hard-to-reach areas..

4.The RG3150TZ road sweeper comes with a 150-liter water tank and an electric micro-diaphragm pump. The sweeping brush features a water mist nozzle, allowing the operator to activate the water pump during cleaning operations to spray water and reduce dust as needed based on road conditions. The water volume is adjustable for optimal dust control.

5. The RG3150TZ road sweeper utilizes a hydrostatic transmission system for its travel drive, featuring a stepless transmission driven by a two-way variable pump and a wheel motor. The steering system is controlled by a miniature full hydraulic steering gear, ensuring that the operation of the entire machine is light, flexible, and easy to maneuver.

6. The braking system utilizes high-quality mechanical brakes imported from Germany, integrated with the automatic braking features of a hydrostatic transmission. This combination ensures safe driving and reliable parking brakes.

7. The operating environment is made comfortable with a heating and cooling air conditioner. This top-mounted system blows air from above, ensuring a pleasant atmosphere in both summer and winter.

8.The front windshield and both sides of the cab’s rear feature a panoramic glass structure, offering an expansive view of the work area. The cab’s bottom plate includes a glass window for monitoring the cleaning process. The door, framed in metal, also has a panoramic glass structure with a sliding glass window. The glass is coated with solar film, ensuring the air conditioner remains effective even in the intense heat of summer.

9. Equipped with a reversing camera, the cleaning operation is made safer by allowing the operator to observe the area behind the vehicle during both cleaning and reversing maneuvers.

10. The brush, crafted from durable nylon, offers a high cleaning efficiency with minimal wear and dust generation, effectively reducing operating costs.

11. The water tank, produced using rotomolding technology, is lightweight and boasts excellent anti-corrosion properties, ensuring a long service life. Its design not only enhances the machine’s appearance but also reduces its overall weight.

12. The dust removal device features a unique design that prevents secondary pollution from wind and dust. It is versatile, suitable for both dry cleaning without water and dual-purpose operations.
