Solar lithium-ion sweeper-RG-TEV8240

Solar Lithium-ion Sweeper RG-TEV8240: Eco-friendly, efficient, with advanced suction sweeping and durable lithium-ion power.

The Solar Lithium-Ion Sweeper is an eco-friendly, efficient cleaning device designed for outdoor sweeping. Powered directly by solar panels and equipped with high-performance lithium batteries, it offers a zero-emission, low-noise green cleaning solution suitable for urban streets, parks, factories, and large commercial areas.

Key Features

1. Solar Power Supply: Equipped with efficient solar panels that effectively utilize solar energy for charging, reducing dependence on traditional electricity and achieving green, environmentally friendly cleaning operations.
2. Lithium Battery Technology: Built-in high-capacity lithium battery that charges quickly, offers long usage time, and has advantages like long cycle life and light weight.
3. High-Efficiency Cleaning: Features a powerful vacuum and sweeping system that can efficiently clean various types of debris, including dust, leaves, paper scraps, and other small waste.
4. Low Noise Design: Operates with low noise, making it suitable for areas with high pedestrian traffic or noise-sensitive environments.
5. Smart Control: Uses advanced smart control systems with features such as automatic obstacle avoidance, path planning, and automatic return to charging station, enhancing convenience and efficiency.
6. Durable Construction: Made with high-strength materials, it is waterproof and dustproof, capable of withstanding various harsh working environments.

Product Specifications

• Dimensions: Length 1200mm x Width 800mm x Height 1000mm
• Weight: 60kg
• Battery Capacity: 48V 20Ah lithium battery
• Charging Time: 6-8 hours
• Operating Time: 8-10 hours
• Solar Panel Power: 100W
• Dustbin Capacity: 50L
• Maximum Sweeping Width: 1.2 meters
• Maximum Sweeping Speed: 6 km/h

Application Scenarios

• Urban Streets: Efficiently cleans various types of debris on city streets, maintaining a clean urban environment.
• Parks and Plazas: Suitable for daily cleaning in large public areas such as parks and plazas, ensuring cleanliness and attractiveness.
• Industrial Sites: Cleans factory and warehouse areas, reducing dust and debris that affect the production environment.
• Commercial Areas: Ideal for maintaining cleanliness in malls, shopping centers, and other large commercial venues.

Usage Instructions

1. Regular Maintenance: Regularly check and maintain the solar panels and lithium batteries to ensure normal operation and extend the device’s lifespan.
2. Charging Management: When not in use for extended periods, fully charge the device and store it in a dry, cool place.
3. Brush Head Cleaning: Regularly clean and replace brush heads to ensure optimal cleaning performance.
4. Safety Operation: Ensure safety during operation, avoiding collisions and falls to protect both the device and personnel.

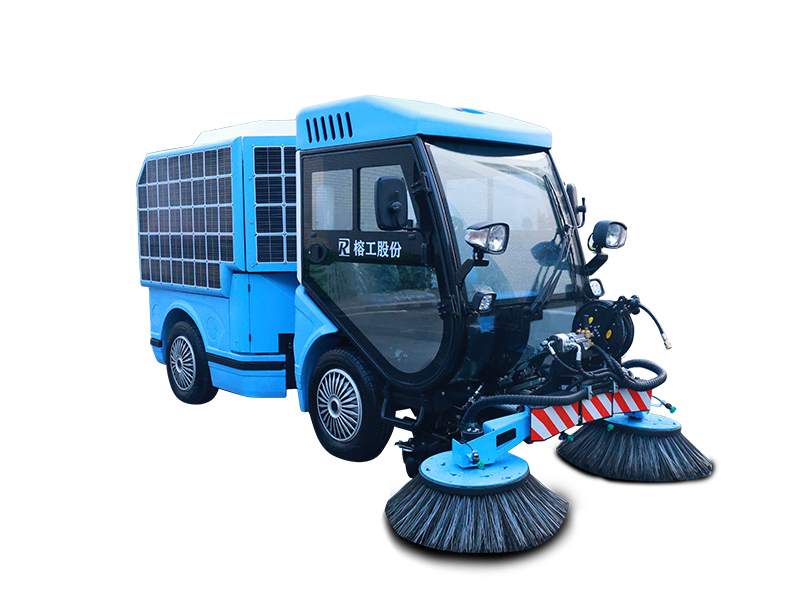

The RG-TEV8240 is a cutting-edge solar lithium battery road sweeper, independently developed by Fujian Ronggong Environmental Protection Machinery Co., Ltd. This innovative machine features a 307V electric control system powered by a 70Kwh high-capacity lithium iron phosphate battery pack. It boasts a 1850L recycling box and a 1.2Kw aviation-grade high-power photovoltaic panel. The road sweeper’s streamlined design includes a panoramic glass cab and an aluminum alloy garbage bin, offering both functionality and aesthetics.

Equipped with a top-mounted integrated heating and cooling air conditioner, the RG-TEV8240 ensures operator comfort in all weather conditions. Its box-type negative pressure structure and articulated body, combined with an electro-hydraulic control hydraulic system, enhance maneuverability and efficiency. The water-based cleaning brush with a spray device prevents dust generation during operations, eliminating secondary pollution.

The sweeping brush width is adjustable from 1.6 meters to 2.4 meters, making it versatile for various cleaning tasks. This road sweeper is ideal for urban non-motorized lanes, city squares, parks, stadiums, exhibition centers, and more, providing comprehensive cleaning solutions for diverse environments.

Function

Air intake: Suction inlet: With a width of 740mm and a cleaning efficiency of over 97%

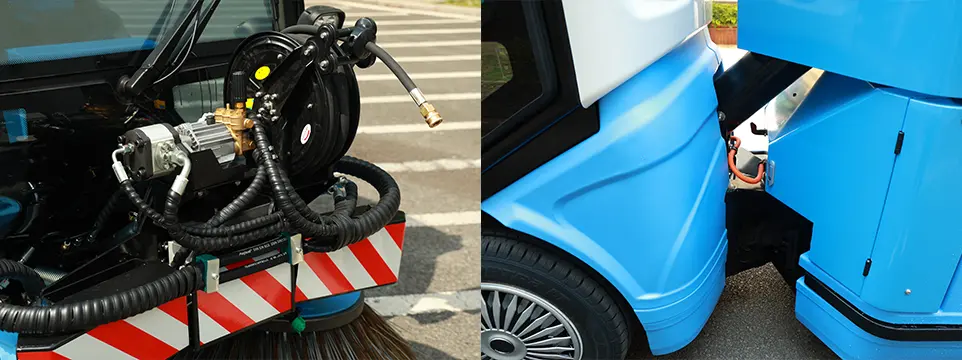

The high-pressure cleaning system of the RG-TEV8240 is designed for comprehensive functionality. It enables self-cleaning, high-pressure flushing of pollutants, and even includes landscaping spraying capabilities. Additionally, the system is equipped with a handheld suction hose, allowing for effective vacuum cleaning of hard-to-reach areas such as green belts and drainage pits. This ensures that even the most challenging cleaning tasks are handled with ease and efficiency.

The RG-TEV8240 is equipped with an automatic drainage structure that simplifies the discharge of sewage with a one-click switch operation. This innovative design ensures effortless and efficient drainage. Additionally, the incorporation of a filter screen significantly reduces the risk of blockages, ensuring smooth and uninterrupted operation during cleaning tasks.

Feature

The RG-TEV8240 features a one-click operation system, making it simple and efficient to use. This system streamlines the cleaning process, ensuring that tasks are completed quickly and effectively.

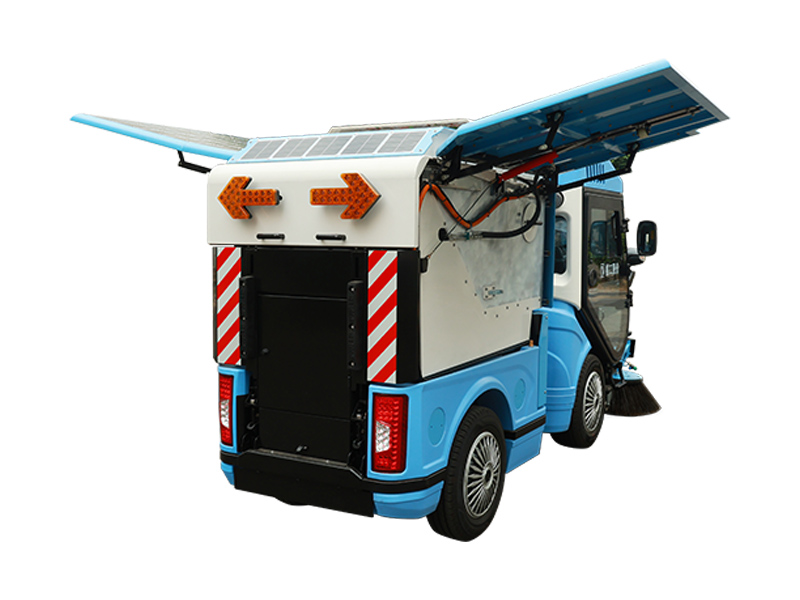

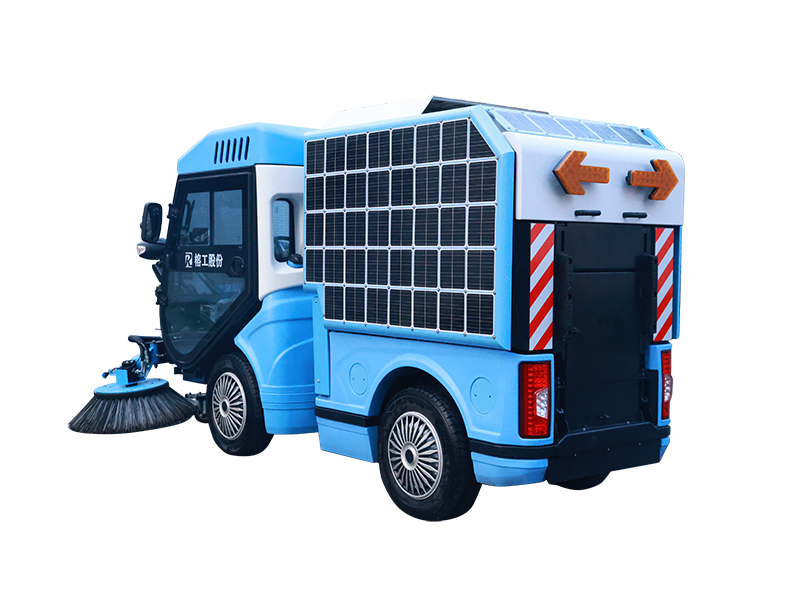

Equipped with aviation-grade photovoltaic panels, the machine is outfitted with fully armored panels on the sides and top, capable of generating up to 1200W of power. This design enhances the machine’s energy efficiency and environmental friendliness.

The RG-TEV8240 boasts a super-large battery capacity for extended endurance. It uses a 70Kwh lithium iron phosphate battery, supplemented by 1.2Kwh of solar power generation, allowing the machine to operate continuously for up to 11 hours.

The height and speed of the brush disc are both adjustable, which helps reduce wear and maintenance costs. The brush structure features left and right telescopic oil cylinders, each equipped with accumulators and control valve groups, enabling the brush to automatically avoid obstacles. This prevents damage to vehicles and road facilities and enhances the machine’s ability to patrol and clean road edges. The air intake width is 740mm, and the cleaning efficiency exceeds 97%.

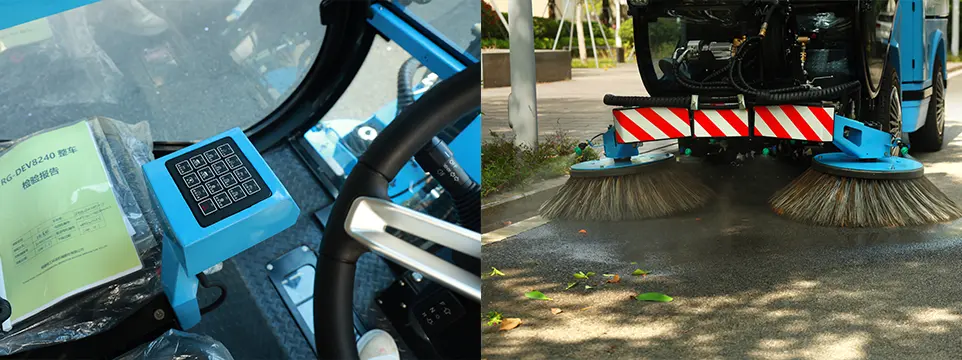

The RG-TEV8240 solar lithium-ion road sweeper is designed for optimal convenience and efficiency. It features a dual-seat driver’s cab, allowing two people to work together seamlessly. The vehicle incorporates a 10.2-inch touch central control screen and a 16-key control panel for human-computer interaction, equipped with a one-key operation button. All functional operation buttons are ergonomically designed for simplicity and ease of use.

For enhanced safety, the sweeper is equipped with front and rear dual recording driving recorders that provide real-time high-definition images, ensuring safe driving operations.

Addressing the challenges posed by increased road surface water during the rainy season, the RG-TEV8240 features an intelligent drainage system. An electric control device is installed at the bottom of the recycling box, and an intelligent sensing sensor at the tail of the box controls sewage discharge with just one click. The system also includes a voice intelligent assistant to prompt during sewage discharge operations, making the entire system intelligent, user-friendly, and easy to operate.
